Suction Box

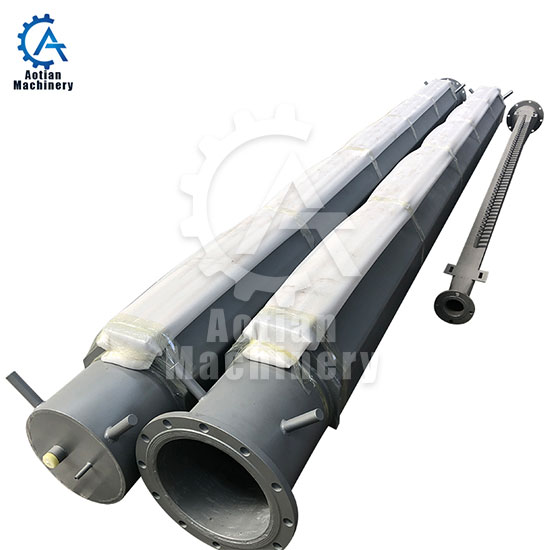

Name: Vacuum Suction Box

Material: UHMWPE / HDPE / PE

Tolerance: +2 -(1-0)

Density: 0.93-0.98g/m³

Water Absorption: <0.01%

Friction Coefficient: <0.09

Injection molding pressure /MPa: 68.9-137.8

Chat Now Inquire Now

Description

All the ceramic panel good abrasion resistance, low friction coefficient， ultrahigh molecular weight polyethylene glass fiber reinforced plastic substrate, high strength stainless steel enclosure, long service life. Asingle slit, the double seam, three slits, etc. Seat can rotate 360 degrees installation is adopted, meet the demand of different installation space.

Technical Data

Material	UHMWPE / HDPE / PE
Tolerance	+2 -(1-0)
Density	0.93-0.98g/m³
Water Absorption	<0.01%
Friction Coefficient	<0.09
Injection molding pressure /MPa	68.9-137.8
Shore hardness	(JIS K7215) 60-70
Breakdown strength	17.7-19.7

Zirconia Technical Data

Names of Index	Units	Index value	Measured value
Hardness	Kg/mm²	HRA=89.5	HRA=88 convert into HV=1300
Volume density	G/cm³	4.08	3.8
Coefficient of linear expansion	1/℃	(6.9-6.5)*10-6/℃	(6.9-6.4)*10-6/℃
Zirconia content	%	99	98-99.5
Friction coefficient		0.005	0.007
Water absorption	%	0.006	0.006

Aluminium Oxide Technical Data

Names of Index	Units	Index value	Measured value
Hardness	Kg/mm²	HV=1300	HRA=88 convert into HV=1300
Volume density	G/cm³	3.8	3.8
Bending strength	Mpa	320	320
Coefficient of linear expansion	1/℃	(6.9-6.5)*10-6/℃	(6.9-6.5)*10-6/℃
Aluminium Oxide content	%	98-99.5	98-99.5
Friction coefficient		0.007	0.007
Water absorption	%	0.006	0.006

related products

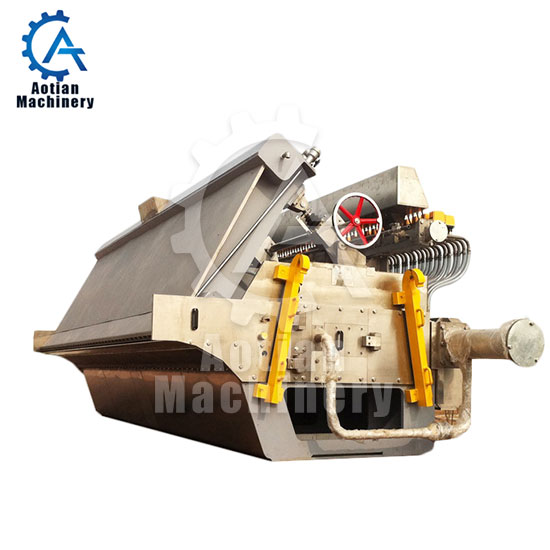

Headbox

Headbox for paper making mill machine ,as an important paper machine part, is the first part from pulp making to paper production. It plays the role of bringing paper pulp to paper machine in pulp flow system. According to the paper type and grade paper machine produces, the quantity of headbox is varified.

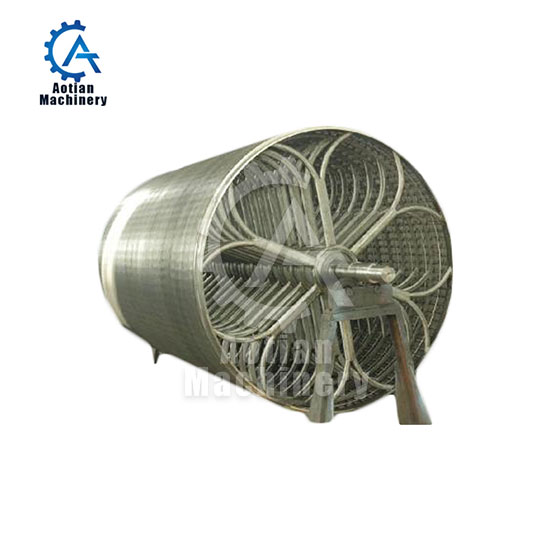

Cylinder Mould

The cylinder mould allows the manufacturing of papers with the following characteristics: - High resistance, as very long fibres of a higher quality can be used. - Great uniformity as the forming of the sheets is improved at a slow speed.

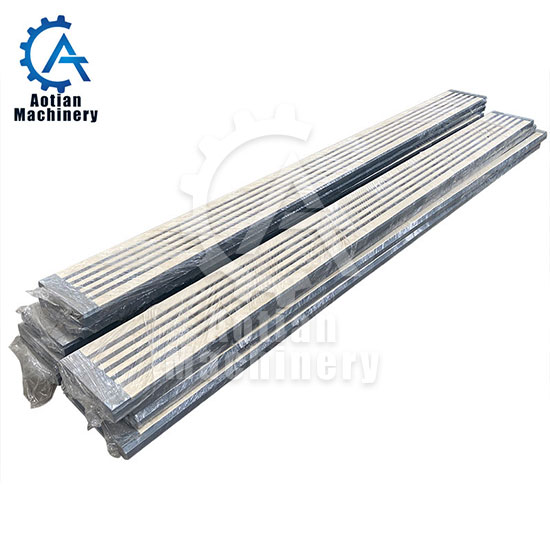

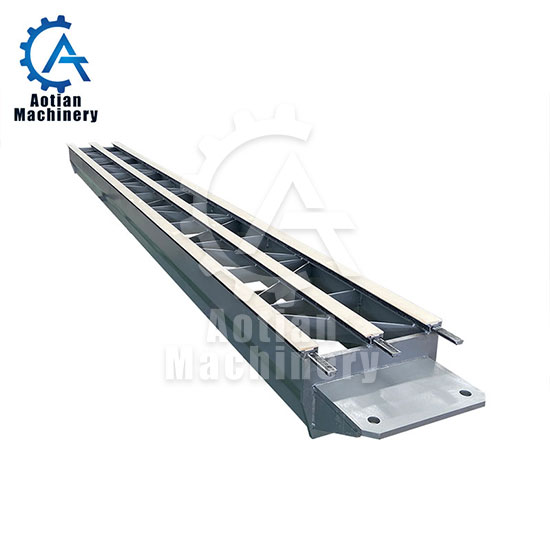

Dewatering Board

The squeegee is available for single, two, three, five seven pieces. Acoording to the paper type speed of paper machine, it can improve the formation dewatering effect of paper pages by 0-3 degrees. The squeegee is made of stainless steel case panel.There are 95 alumina ceramics, 99 alumina ceramics zirconia ceramics, the base materials are super high molecular polyethylene fiberglass.

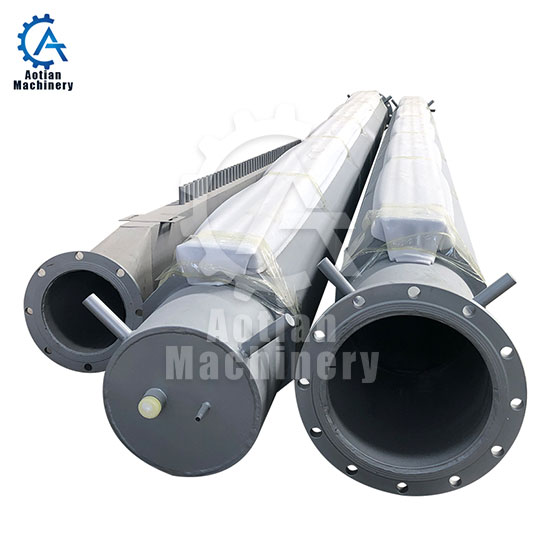

Vacuum Suction Box
