High Density Cleaner

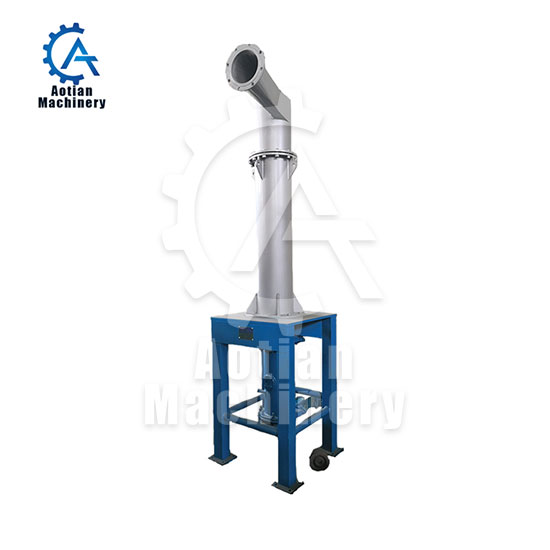

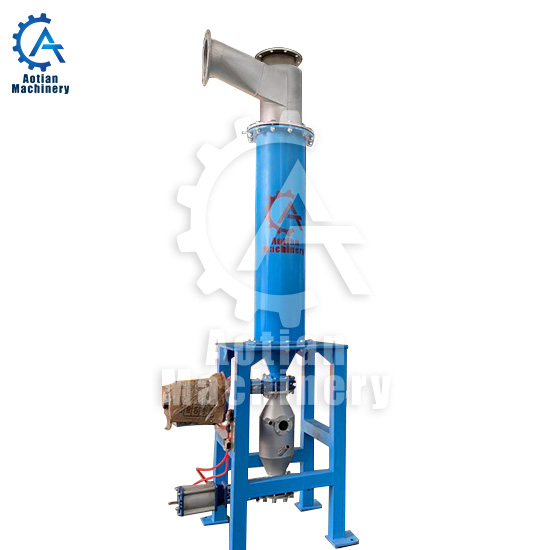

Name: High Density Cleaner

Model: ATZSC2-ATZSC7

Throughput(l/min): 900-12000

Concentration of input pulp(%): 2-5

Pressure of input pulp(mpa): 0.15-0.35

Pressure of output pulp (mpa): 0.1-0.25

Chat Now Inquire Now

Description

High density cleaner for paper pulp machine mainly applied to remove all kinds of heavy impurities in paper pulp,like staples,stone,glasses,etc.Volute pulp inflow chamber,the eddy ability is strong and low pressure area subarea is obvious.This makes accepts and impurities separate thoroughly. Wear resistance ceramics cone,long service life.Specially designed long cone has small taper angle and fine cleaning efficiency.Equipment with PLC control cabinet,convenient and easy to control,sufficiently discharge impurities.

Technical Data

Name	High Density Cleaner
Type	ATZSC2	ATZSC3	ATZSC4	ATZSC5	ATZSC6	ATZSC7
Throughput(l/min)	900-1400	1800-2600	3000-4500	4500-5800	5800-7500	8000-12000
Concentration of input pulp(%)	2-5
Pressure of input pulp(mpa)	0.15-0.35
Pressure of output pulp (mpa)	0.1-0.25
Pressure of backwash water(mpa)	Pressure of input pulp+0.02Mpa

related products

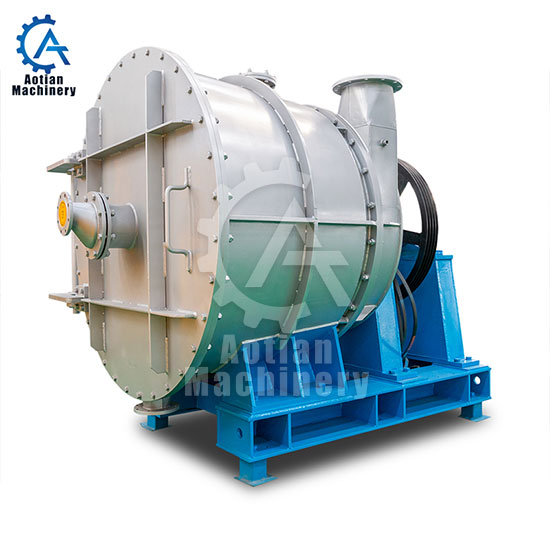

Fiber Separator

Fiber separator is a pulping equipment used in the papermaking industry. It is mainly used to separate the light and heavy impurities in the pulp and to carry out secondary crushing of the pulp from the hydraulic pulper. It is mainly composed of base, shell, impeller, bearing frame, cutter plate and sieve plate.

Pressure Screen

The pressure screen adopts the upward flow structure design of the bottom feed slurry, the bottom discharge heavy slag, and the top discharge light slag. The light impurities and the air in the slurry naturally rise to the top slag discharge, and the heavy impurities can settle into the bottom as soon as they enter the body.it Include Screen basket,Rotor,housing and transmission.

Reject Sorter

Less fiber in the reject after this equipment, no water basically, to reduce reject handing cost in the following procedure.

Refiner

The equipment is mainly used for coarse beating, refining and re-pulping of broke and waste paper.

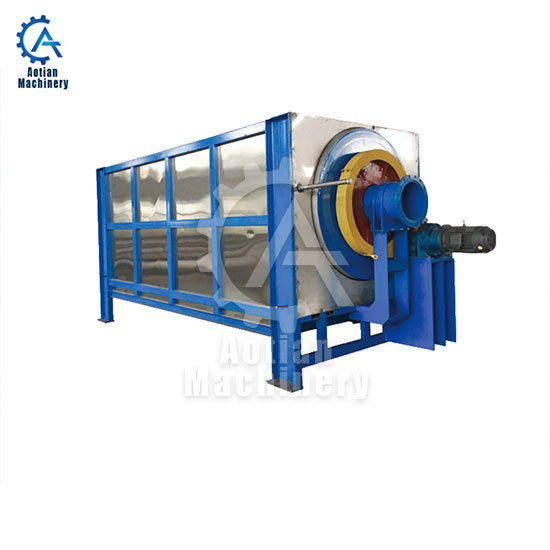

Drum Screen
