Corrugated paper machine-Aotian Machinery Manufacturing Co., Ltd.

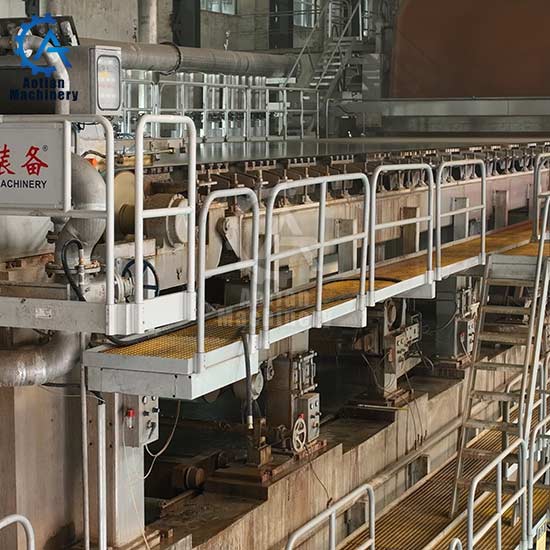

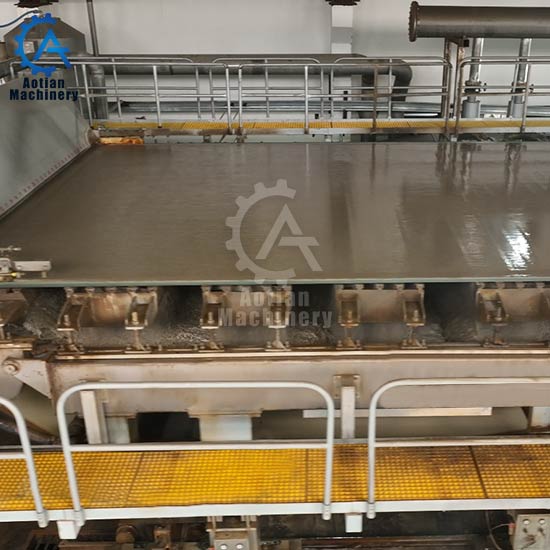

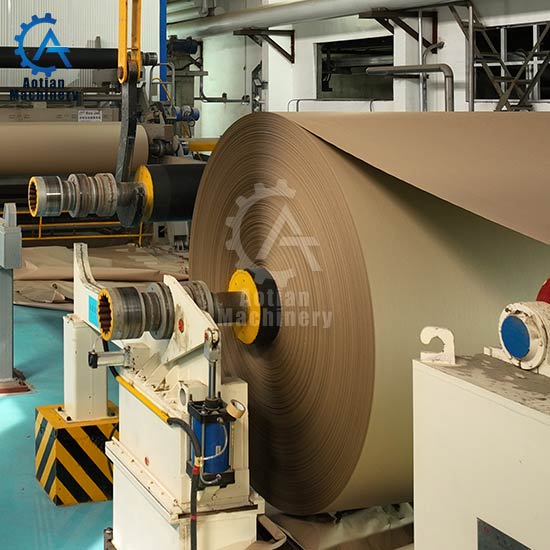

Corrugated paper machine

Name: Corrugated paper making machine

Model: 1092-5600

GSM: 90-300g/㎡

Production: Customization

Working speed: Customization

Center distance: According to models

Transmission form: Use AC frequency conversion and driving by step

Chat Now Inquire Now

Description

Main models：1092、1575、1760、1880、2100、2400、3800、4000、4200、4600、4800、5000、5200、5600.

Corrugated paper board machine production line, referred to as corrugated line, is the key production equipment of corrugated box production enterprises. Corrugated paper manufacturing machines production line is the most important production line equipment in carton packaging enterprises, including several important components such as wet end equipment, cadre equipment, and production management system.

Technical Data

Paper grade	Corrugated paper making machine
Net Paper width	1092-5600mm
GSM	90-300g/m2
Production	Customization
Working speed	Customization
Center distance	According to models
Transmission form	Use AC frequency conversion and driving by step
