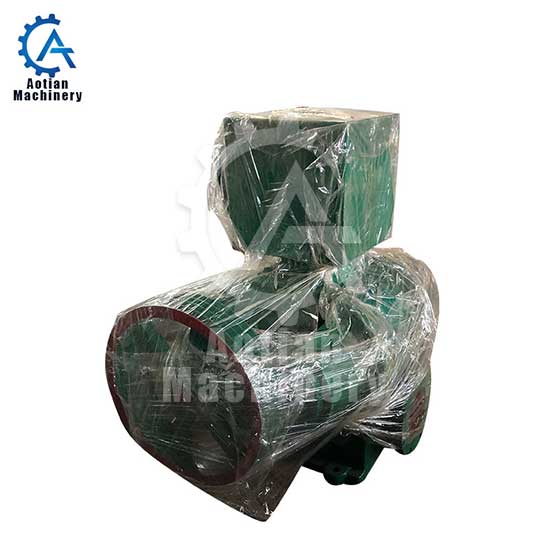

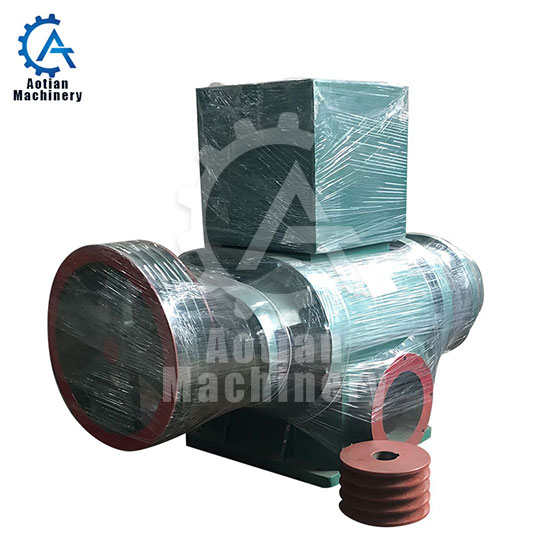

Roots vacuum pump

Name: Roots vacuum Pumpr

Model: ZBK13-ZBK33

Max.extraction quantity(m³/min): 3.8-60

Rated vacuum degree(kpa): 33.3-47

Inlet and outlet diameter(mm): Φ85-Φ300

Rated Rotation Speed(r/min): 400-550

Weight(kg)： 200-3500

Chat Now Inquire Now

Description

Roots vacuum pump is characterized by: quick start, less power consumption, low operation and maintenance costs, pumping speed, high efficiency, to be pumped gas contained in a small amount of steam and dust is not sensitive, in the range of 100 ~ 1 pa pressure has a large pumping rate, can quickly exclude the sudden release of air. Widely used in petroleum, chemical, metallurgy, textile, papermaking and other industries.

Technical Data

Roots vacuum Pump
Model	ZBK33	ZBK13	ZBK15	ZBK16	ZBK17	ZBK18
Max.extraction quantity(m³/min)	3.8	6	10	15	30	60
Rated extraction quantity(m³/min)	3.1	4.2	7.5	11	22	47
Rated vacuum degree(kpa)	33.3	33.3	40	40	45	47
Rated Rotation Speed(r/min)	500	400	450	400	400	550
Inlet and outlet diameter(mm)	Φ85	Φ125	Φ150	Φ200	Φ250	Φ300
Equipped Motor	Y112M- 4-4KW	Y160M- 6-7.5KW	Y160L- 4-15KW	Y200L2- 6-22KW	Y280S- 6-45KW	Y315M- 6-90KW
Equipped V-Belt	A-1550	B-2800	B-2800	B-3550	D-4500	D-4000
Weight(kg)	200	440	535	890	2100	3500
Overall size（L×W×H） mm	682×359× 575	906×583× 915	967×578× 950	1019×748× 1205	1340×857× 1550	2205×2934 ×2190
