Model: GF120/58-1-GF310/206-2
Maximum outer diameter: 130-330mm
Natural height: 58-206
Minimum compression: 34-74
Maximum elongation: 66-238
Bearing capacity: 122-2992KG

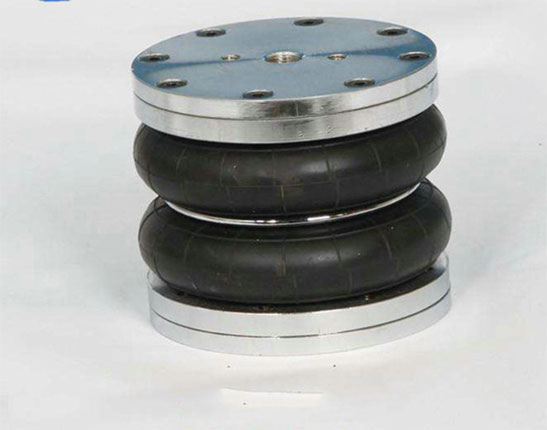

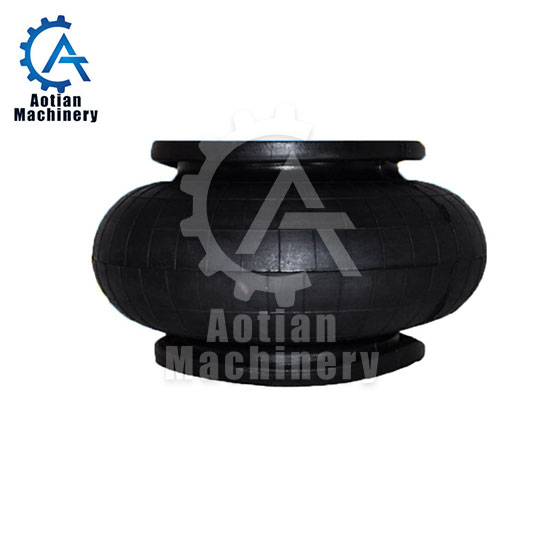

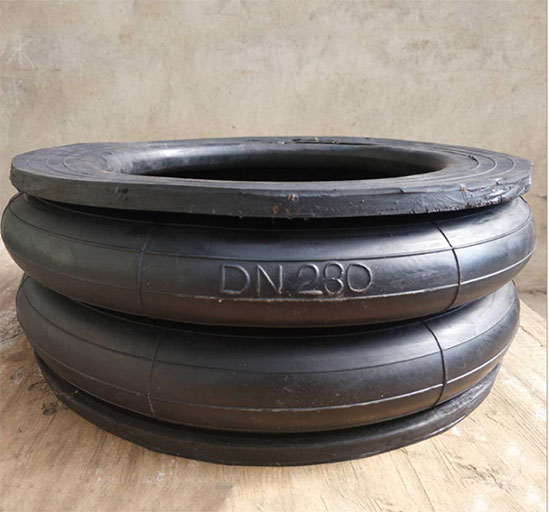

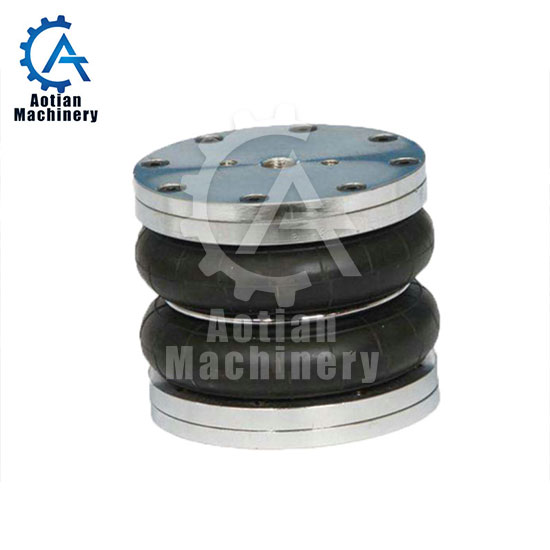

Air/Pneumatic Spring is a kind of curved capsule made of rubber and network cable. The two ends of the capsule are connected with two steel plates to form a compressed air chamber. The rubber and the wire themselves do not provide the load, but are filled with compressed air inside the capsule. The number of flaps is usually 1~3 flaps, but it can also be designed and manufactured into 4 or more than 5 flaps according to the need, and two pneumatic Springs can also be superimposed under certain conditions.
| Model | GF120/58-1 | GF160/95-1 | GF188/102-1 | GF230/105-1 | GF160/166-2 | GF180/195-2 | GF230/206-2 | GF280/206-2 | GF310/206-2 |
| Inner diameter(MM) | 80 | 100 | 120 | 150 | 100 | 120 | 150 | 200 | 230 |
| Maximum outer diameter(MM) | 130 | 160 | 210 | 240 | 175 | 190 | 255 | 305 | 330 |
| Natural height(MM) | 58 | 95 | 102 | 105 | 166 | 195 | 206 | 206 | 206 |
| Minimum compression(MM) | 34 | 50 | 50 | 70 | 74 | 75 | 74 | 74 | 74 |
| Maximum elongation(MM) | 66 | 116 | 116 | 125 | 190 | 225 | 238 | 238 | 238 |
| Bearing capacity(KG) | 122-444 | 150-550 | 208-860 | 250-950 | 149-593 | 210-750 | 388-1457 | 668-2480 | 813-2992 |
