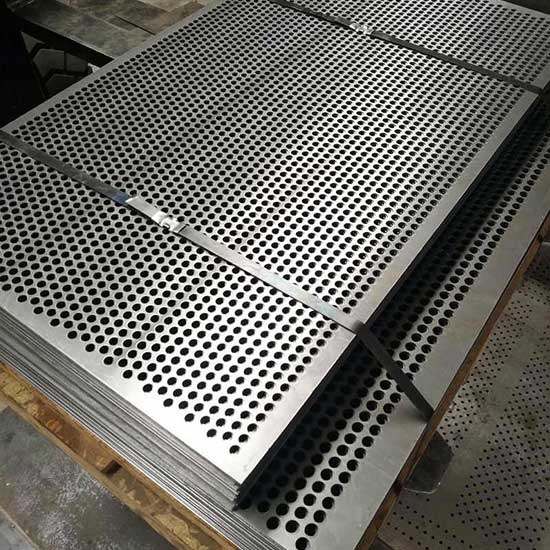

Name: Screen basket and Screen plate
Model: ATZNS0.3-ATZNS3
Screen Area(㎡): 0.3-3
Sieve hole size (mm): Φ1.6-Φ3.5
Seam Size (mm): 0.1-0.55
Screen Hole (T/D): 50-700
Screen Slot (T/D): 30-450

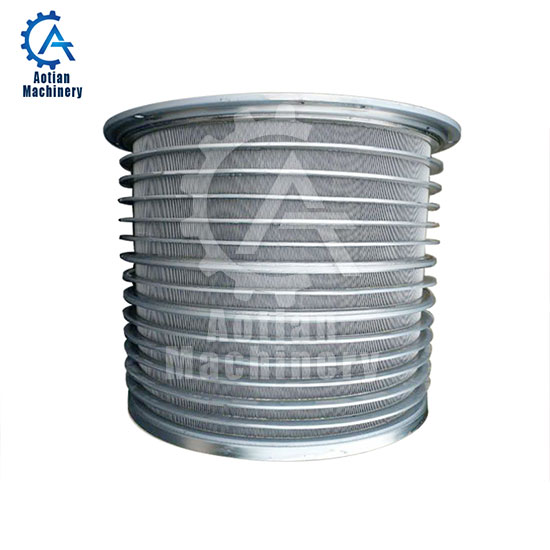

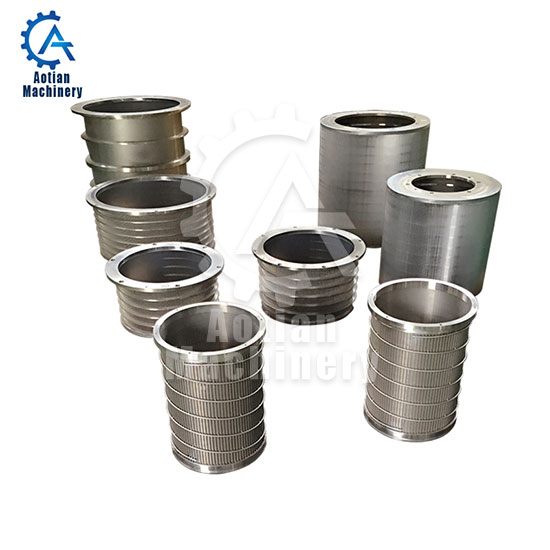

Screen basket is suitable for pressure screen in pulp making system and paper making system.Our pressure screen basket or drum has been exported to India, Bangladesh, and other countries. All the customers satisfy with our products with a high quality and competitive price. We also can produce the products according to your detailed requirements with drawings.
| Product name | Screen basket | |||
| Model NO. | ATZNS0.3 | ATZNS0.9 | ATZNS1.5 | ATZNS3 |
| Screen Area(㎡) | 0.3 | 0.9 | 1.5 | 3 |
| Sieve hole size (mm) | Φ1.6-Φ3.5 | Φ1.6-Φ3.5 | Φ1.6-Φ3.5 | Φ1.6-Φ3.5 |
| Seam Size (mm) | 0.1-0.55 | |||
| Screen Hole (T/D) | 50-80 | 135-250 | 200-380 | 400-700 |
| Screen Slot (T/D) | 30-50 | 90-150 | 140-230 | 300-450 |
| Inlet pulp consistency (%) | 1--4 | |||
| Motor Power (Kw) | 22-55 | 37-90 | 55-132 | 90-220 |
