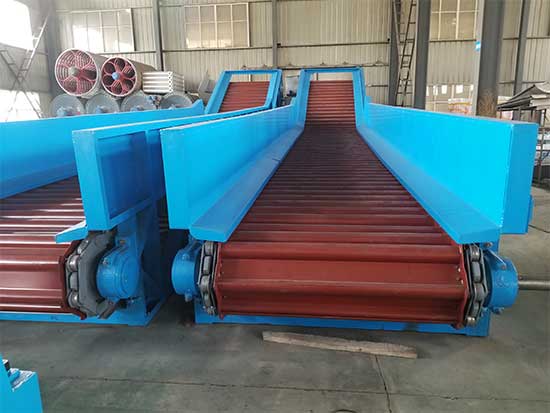

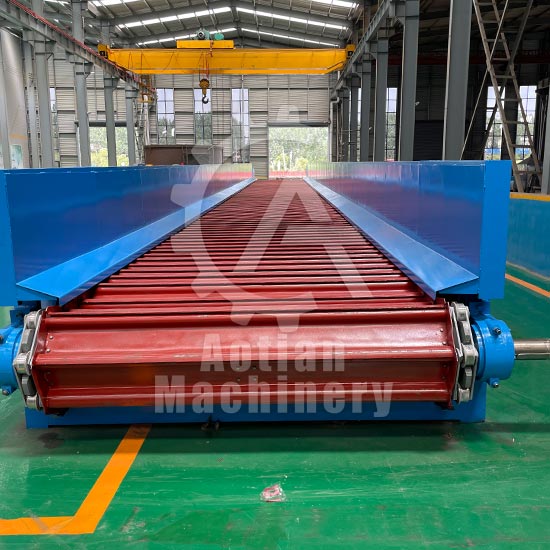

Chain Plate Conveyor

Name: Chain Plate Conveyor

Model: AT1200-AT2500

Chian plate width(mm): 1200-2500

Speed of transportation(m/min): 4-9

Capacity of transportation(kg/min): 150-550

Conveying material: waste paper pulp board

Angle of incline: 17-300º


Chain conveyor has the advantages of large conveying capacity, simple structure,easy maintenance, standardized components etc.According to different technical, it can be operated either in single unit or multiple unites.It can also be installed horizontally or slope to meet the need of different transfer lines. In order to fulfill the requirement of different production line, it can be connected with other conveying equipment constitute a standard or tilted conveyor system.

Technical Data

Product name Chain Plate Conveyor
Model AT1200-1500 AT1600-2000 AT2000-2500
Chian plate width(mm) 1200-1500 1600-2000 2000-2500
Speed of transportation(m/min) 4--9
Capacity of transportation(kg/min) 150-550
Conveying material waste paper pulp board
Angle of incline 17-300º
Motor power(kw) 11--15 18.5-22 22-30
