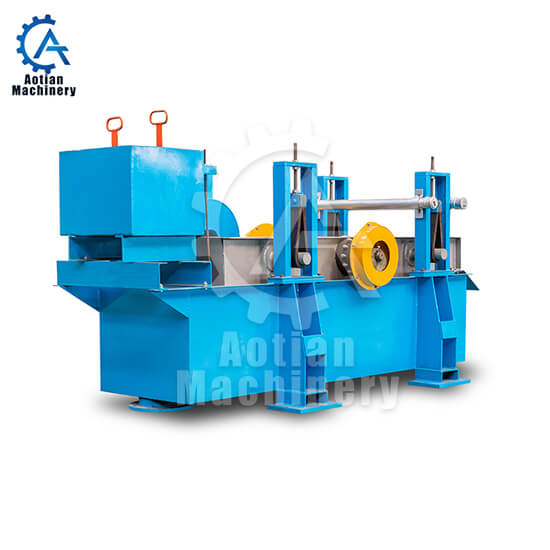

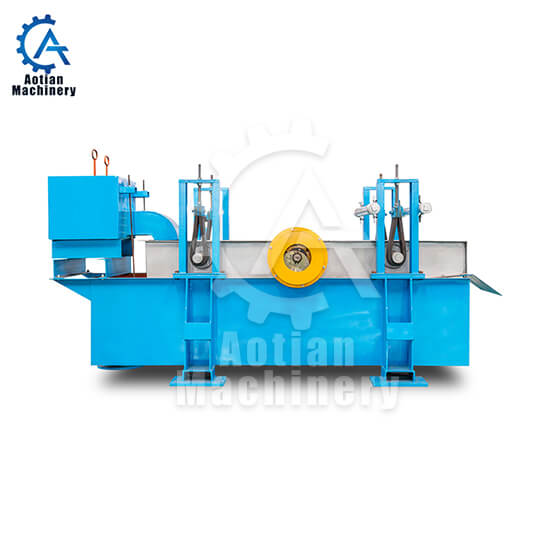

Vibrating Screen

Name: vibrating screen

Model: ATZSK1-ATZSK3

Area of Screen (㎡): 1-3

Product Capacity of Hole screen (t/d): 7.5-75

Product Capacity of Gap Screen (t/d): 3.5-25

Input Pulp Concentration of Hole screen (%): 1.0-1.5

Input Pulp Concentration of Gap Screen (%): 0.5-0.8

Chat Now Inquire Now

Description

Vibrating screen mainly used to select pulp roughly. With steady pulp box and pulp receiving groove, this machine is full closed and has some advantages of firm structured, long operating life, convenient in maintenance and so on.

Technical Data

Product name	Vibrating screen
Type	ATZSK1	ATZSK2	ATZSK3
Area of Screen (m2)	1	2	3
Product Capacity of Hole screen (t/d)	7.5-25	12-50	25-75
Product Capacity of Gap Screen (t/d)	3.5-75	7--15	11--25
Input Pulp Concentration of Hole screen (%)	1.0--1.5
Input Pulp Concentration of Gap Screen (%)	0.5-0.8
Motor power (Kw)	2.2	3--7	4
