Egg Tray Machine aotian paper machinery-Aotian Machinery Manufacturing Co., Ltd.

Egg Tray Machine

Product name: egg tray machine

Model: AT1500-AT8000

Output: 500 pieces/hour-8000 pieces/hour

Chat Now Inquire Now

Description

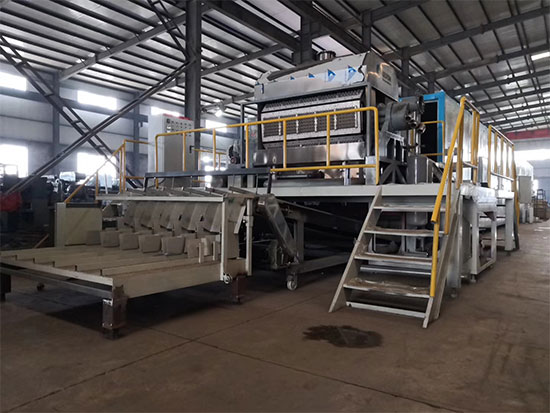

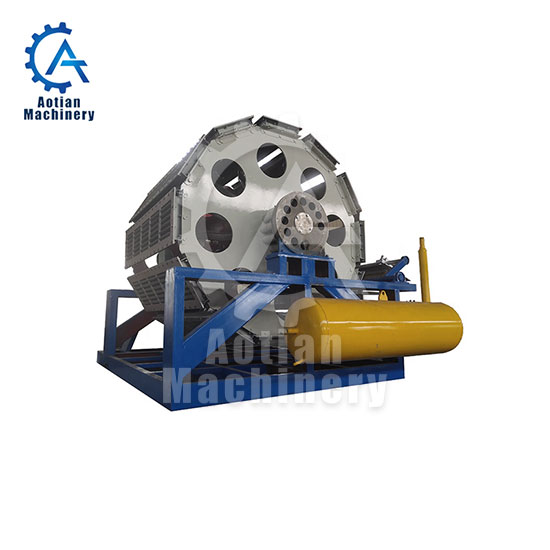

Egg trays making machine is a kind of environmental protection equipment. It can make egg box, paper egg .The pulp paper egg tray machine is controlled by PLC, the degree of the automation is high, and it is easy to learn, service is convenient. Also the scope of the machine is widely. It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing.

Technical parameters

Name	Egg Tray
Yield	1500 tablets/hour	2000 tablets/hour	2500 tablets/hour	3500 tablets/hour	4000 tablets/hour	5000 tablets/hour	6000 tablets/hour	8000 tablets/hour
Model	AT-3*1	AT-3*1	AT-3*4	AT-4*4	AT-4*8	AT-5*8	AT-5*12	AT-6*12
Water consumption	120kg/hour	160 kg/h	200kg/hour	280kg/hour	320 kg/h	400 kg/h	480 kg/h	640kg/h
Power consumption	32kW/hr	45kW/h	58kW/h	78kW/h	80kW/h	85kW/h	90kW/h	100kW/h

related products

Press roll

The press roll is the main component of the press device. Both ordinary press and positive press use flat roll press. The structure of the flat roll press, the upper roll is a stone roll, and the lower roll is a rubber roll. Both rolls have flat and smooth roll surfaces. The bottom roll of the flat roll press is a rubber-coated cast iron roll.

Kraft Paper machine

Main models: 1092, 1575, 1760, 1880, 2100, 2400, 3800,4000,4200,4600,4800,5000,5200,5600 etc. Single dryer single cylinder mould, multi dryers multi cylinder mould, foudrinier series paper machine.

Pulp Pump

Pulp pumps are used for transporting mixtures of liquid and solid components ; Pulp pump can be widely used in light industry, paper industry, temperature below 110 ° C,concentration less than 6% slurry transport.

Roots vacuum pump

Roots vacuum pump is characterized by: quick start, less power consumption, low operation and maintenance costs, pumping speed, high efficiency, to be pumped gas contained in a small amount of steam and dust is not sensitive, in the range of 100 ~ 1 pa pressure has a large pumping rate, can quickly exclude the sudden release of air. Widely used in petroleum, chemical, metallurgy, textile, papermaking and other industries.

Soft calender roll

Its function is to make the paper web density uniform and soft and smooth. It can be lightly pressed on a calender and make the surface of the paper web smoother. Due to the elastic encapsulation, they have excellent heat resistance and scratch resistance. Soft calender rolls are mainly used on soft calenders.

Gravity Thickener

Disc thickener is mainly used for washing and thickening pulp in pulping and paper making process.

Guide roll

Paper machine guide rolls are divided into two types: felt rolls and screen guide rolls. The application parts include pressing, drying, crimping, rewinding and other parts. Felt ducts, wire guide rolls, paper guide rolls, chrome-plated rolls, etc. are all over the front and back of the paper machine. Guide rolls guide and drive the wire and felt in the wet end and drying section of the paper machine. The guide rollers in both areas use the same bearings. However, different lubrication and sealing are used depending on the application location. In the old paper machine, the wet end section is usually lubricated with grease, and the dry section is lubricated with oil. In modern paper machines, both sections are lubricated with oil circulation. Due to different working conditions, the wet end and dry section need to be lubricated with their own oil circulation.

Water Ring Vacuum Pump

Water ring vacuum pump has the advantages of simple structure, convenient maintenance, reliable operation, high efficiency and energy saving, and can adapt to the bad working conditions such as large displacement, load impact fluctuation. Widely used in paper making, chemical, light industry, food, metallurgy, building materials, stone tools, coal washing, mineral processing, fertilizer and other industries.

Drum Pulper

Drum pulper belongs to Pulping System of paper machinery and is a more advanced Pulping System.
